Taiyo seiki
TSL series Heavy Duty Long Shackle

This is a shackle with deep pockets.

Features

  • This is a standard product that is safe, lightweight, and strong.
  • Shackle with deep pockets.
  • The pin is tapered.
  • Red baking process is applied.

    • Uses

  • For loading and unloading work, pulling out sheet piles.
  • For work at height.

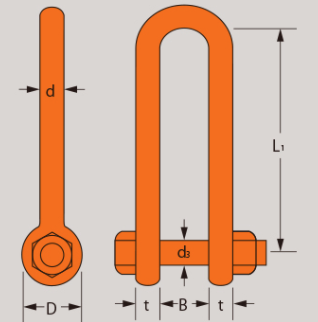

    • taiyo seiki shackle drawing

    Specifications

    Attachment Bolt and nut type
    Basic working load 4t
    Dimension B 50mm
    Dimension D 45mm
    Dimension L 160mm
    Dimension d1 19mm
    Dimension d3 19mm
    Weight 1.5kg
    Materail Special Alloy Steel
